      Macrium Image Guardian

      Macrium Image Guardian Overview



      Macrium Image Guardian protects your backup files from unauthorised modification.

      MIG grants write access to existing backups file for Macrium Reflect, any image tools created by us, and optionally, MS RoboCopy. All other process attempting to update existing backup files will be denied access.

      MIG protects local NTFS, ReFS and exFAT volumes and allows Macrium Reflect to use the protected volume as a shared network resource.

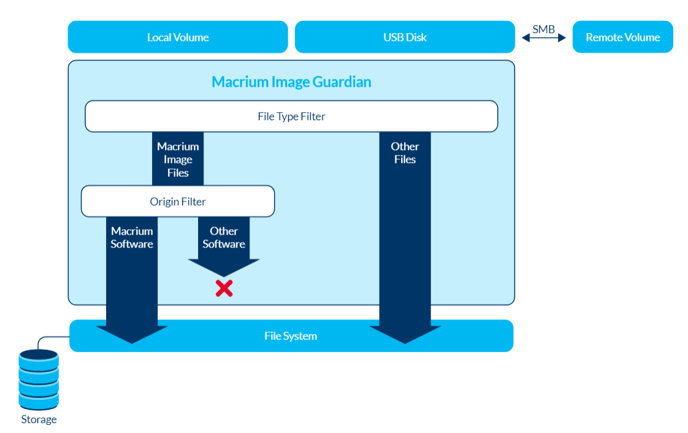

      Macrium Image Guardian protection architecture

      image2017-7-23 20:57:47.png

      Macrium Image Guardian protecting backups in a networked environment





      In the above illustration, the PC sharing the backup repository (Shared Volume) has a full install of Macrium Reflect, including MIG. A local drive is shared over the network and MIG has been enabled on that drive in the Macrium Reflect user interface.

      The other PC’s on the network can backup to this shared drive and do not require MIG to be installed. Backup file write access is automatically granted to Macrium Reflect 7.1, and later, write access for earlier versions of Macrium Reflect and other processes will fail.

      The PC hosting the share with MIG installed can be used as a standalone Macrium Reflect installation. The protected drive will prevent unauthorised access to backup files on that drive if the local PC creates backups to the protected volume.

      Protected File Access

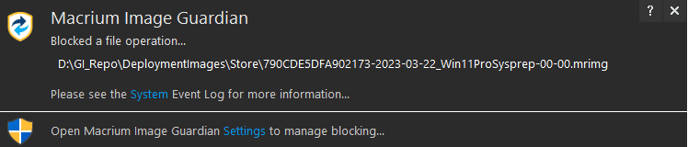

      Macrium Image Guardian will protect all existing local backup files from unauthorised modification or deletion. All such activity will be blocked with error 0x80070510 - Storage policy block.

      image2017-9-10 19:28:48.png

      Protected File Types

      The following file extensions are protected by Macrium Image Guardian.

      Extension Backup Type
      .mrimg Macrium Reflect image files, prior to Macrium Reflect X.
      .mrimgx Macrium Reflect image files created by Macrium Reflect X.
      .mrbak Macrium Reflect file and folder backup.
      .mrex Macrium Reflect Exchange backup files.
      .mrsql Macrium Reflect SQL backup file.

      Windows File operations on Macrium Backup files

      Macrium Image Guardian will block opening of backup files for modification or delete, The following lists some of the operations and special considerations if you are maintaining the location and life of Macrium backup files outside of Macrium Reflect.

      1. Windows Explorer Copy. New backup files can be created on a protected volume as the result of a Windows Explorer copy operation.

      Copying a file to the same folder as the original will be blocked on local file systems. Duplicate files in the same folder is undesirable and should be avoided. The identity of the backup file will be duplicated and this can lead to unpredictable results in Macrium Reflect.

      2. DOS Commands. COPY, MOVE, and XCOPY.  These commands will succeed where the result of the operation is a new file. Overwriting or deleting existing backup files files will fail.

      3. RoboCopy. RoboCopy.exe can copy, move and synchronise folders.  For more information on RoboCopy parameters please see here: https://technet.microsoft.com/en-us/library/cc733145(v=ws.11).aspx

      Some RoboCopy parameters may perform delete file and overwrite operatons on your backup files and have special functionality in MIG if the 'Allow RoboCopy to sync and move backup files on protected volumes' option is enabled:

      image2017-9-17 14:25:17.png

      Parameter

      Rule
      /MIR
      /PURGE

      If the target folder is on a protected volume then the the /MIR  /PURGE parameters will only delete backup files in the target folder if both of the following conditions are true:

      1. The source folder is a backup destination in any saved backup definition xml file.
      2. The target folder is not a backup destination in any saved backup defintion xml file

      This ensures that the synchronisation operation cannot inadvertently, or otherwise, delete files in a folder that is used as a backup destination in Macrium Reflect.
      /MOVE
      /MOV

      		 If the source folder is on a protected volume then the /MOVE /MOV parameters will only delete backup files in the source folder if the destination folder is also on a protected volume.

      This ensures that existing files cannot be moved to an unprotected volume and compromised.
      All overwrite operations If the result of any parameter is to overwrite an existing backup file on a protected volume then this will only be allowed if the target folder is not a backup destination in any saved backup definition xml file.

      RoboCopy and Network Shares

      If the source of a /MOVE /MOV or target of a /MIR /PURGE operation is a MIG protected volume on a network share then all delete operations are blocked. This is because RoboCopy 'Rules' can only be applied if the Windows session that's opening the files is the same Windows session that's running RoboCopy. In the case of a network share, the remote computer is opening the files and will block all delete operations.

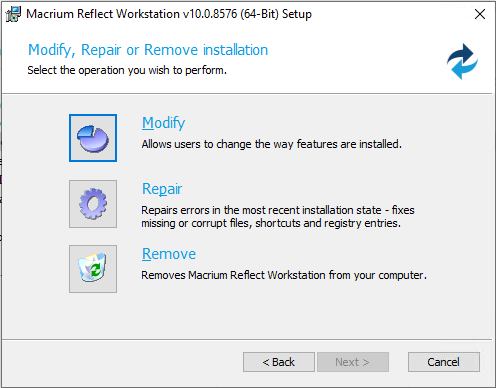

      Installing Macrium Image Guardian

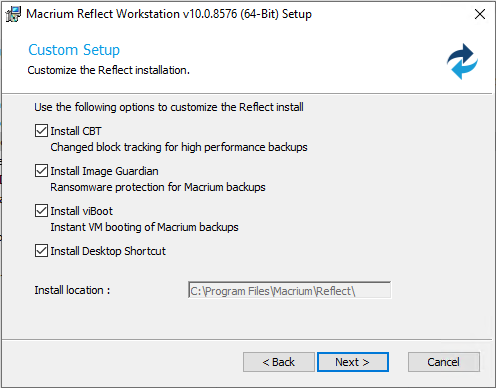

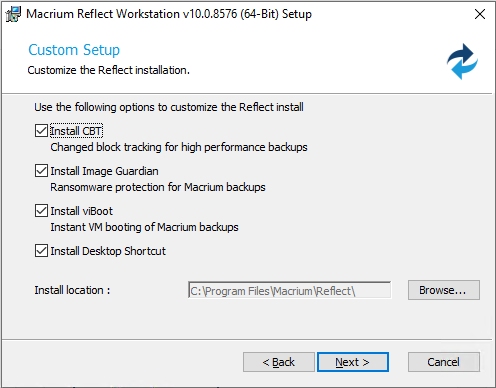

      MIG is an optional component in the Macrium Reflect installer, It is selected by default and is available for Windows 7 and above in all editions of Macrium Reflect.


      After installation, if MIG has automatically protected any local back drives for existing backup definitions then the following message box is displayed the first time Macrium Reflect is started:

      image2017-9-18 6:16:14.png

      Activating Macrium Image Guardian

      MIG is active directly after installation and will automatically protect backup destination drives.

      To turn MIG on, off, or temporarily disable take the Other Tasks menu, then select the Macrium Image Guardian Settings... menu option.


      You can also activate the MIG Settings dialog by clicking Settings in the MIG blocked activity popup.

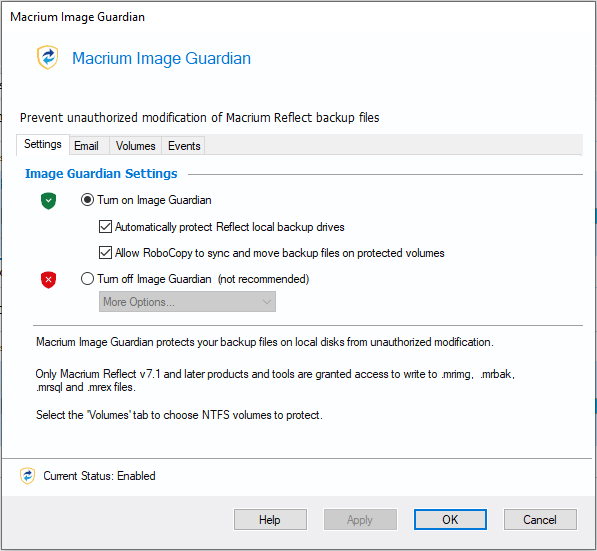

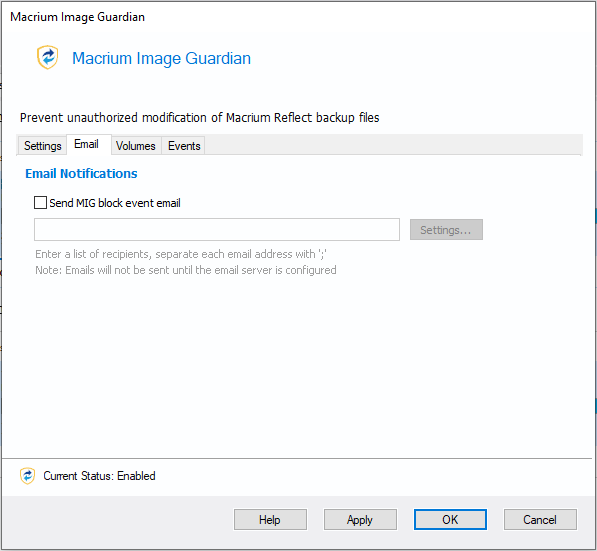

      The MIG Settings dialog

      Turn on Image Guardian Starts the Image Guardian Service
      Automatically protect local backup drives

      When turned on, all saved backup definitions are searched and Image Guardian is enabled for local backup drives

      When creating a new backup, unprotected target drives will be automatically protected by enabling Image Guardian on the drive.

      When the PC is restarted, Image Guardian will be re-enabled on all backup drives. This prevents accidentally leaving your drives unprotected by manually turning protection off.
      Allow RoboCopy to sync and move backup files on protected volumes

      Enables the MS utility RoboCopy to delete and overwrite backup files on protected volumes with the /MOV, /MOVE, /PURGE and /MIR parameters.

      Parameter
      Rule
      /MOVE
      /MOV

      		 If the source folder is on a protected volume then the /MOVE /MOV parameters will only delete backup files in the source folder if the destination folder is also on a protected volume.

      This ensures that existing files cannot be moved to an unprotected volume and compromised.
      /MIR
      /PURGE

      If the target folder is on a protected volume then the the /MIR  /PURGE parameters will only delete backup files in the target folder if both of the following conditions are true:

      1. The source folder is a backup destination in any saved backup definition xml file.
      2. The target folder is not a backup destination in any saved backup defintion xml file

      This ensures that the synchronisation operation cannot inadvertently, or otherwise, delete files in a folder that is used as a backup destination in Macrium Reflect.
      All overwrite operations If the result of any parameter is to overwrite an existing backup file on a protected volume then this will only be allowed if the target folder is not a backup destination in any saved backup definition xml file.

      RoboCopy and Network Shares

      If the source of a /MOVE /MOV or target of a /MIR /PURGE operation is a MIG protected volume on a network share then all delete operations are blocked. This is because RoboCopy 'Rules' can only be applied if the Windows session that's opening the files is the same Windows session that's running RoboCopy. In the case of a network share, the remote computer is opening the files and will block all delete operations.
      Turn off Image Guardian

      Turns off the Image Guardian service. Optionally select from the list of further options:

      1 Minute to 2 Hours Select to temporarily disable MIG for the selected time
      Restart service on reboot MIG will remain 'Off' until the next Windows reboot.
      Permanently Off When 'Turn off Image Guardian' is selected, 'Permanently Off' is the defaulted option if MIG is currently enabled and nothing is selected in the 'More Options...' list. Otherwise, selecting this option will cancel any temporary disable settings and turn off MIG.

      The status area shows the current status of MIG:





      Clicking 'Re-Enable' will immediately cancel the outstanding temporary disable and turn MIG 'On'.

      Macrium Image Guardian Events

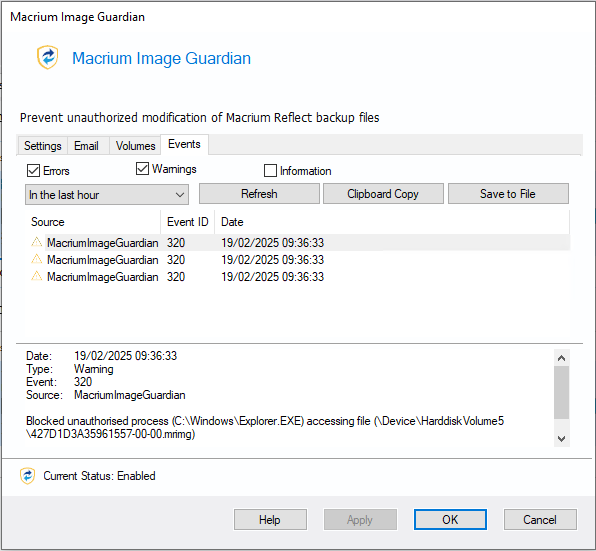

      To view Image Guardian windows events, take the Other Tasks menu, then select Macrium Image Guardian Settings... menu option and select the Events tab:


      Number

      		 Event Name Severity Description

      100

      		 EVT_MIG_SERVICE_STARTED Informational Image Guardian service started
      110 EVT_MIG_DRIVER_STARTED_BY_SERVICE Informational Image Guardian driver started by service
      200 EVT_MIG_SERVICE_STOPPED Informational Image Guardian service stopped
      300 EVT_MIG_VOLUME_PROTECTED Informational Volume (\\?\Volume{6a2d53fe-c79a-11e1-b189-806e6f6e6963}\) is protected
      310 EVT_MIG_BLOCK_VERIFICATION_FILE_ACCESS Informational Blocking process (processname.exe) creating verification file as the process is not Macrium certified
      320 EVT_MIG_BLOCKED_FILE_ACCESS Warning Blocked unauthorised process (processname.exe) accessing file (\\?\Volume{6a2d53fe-c79a-11e1-b189-806e6f6e6963}\Folder\filename.mrimg)
      330 EVT_MIG_USER_PROTECTED_VOLUME Informational User has enabled Image Guardian on volume (\\?\Volume{6a2d53fe-c79a-11e1-b189-806e6f6e6963}\)
      340 EVT_MIG_USER_DISABLED_VOLUME Informational User has disabled Image Guardian on volume (\\?\Volume{6a2d53fe-c79a-11e1-b189-806e6f6e6963}\)
      500 EVT_MIG_ERROR_BAD_EVENT Error Error could not open Image Guardian verification event. Error code = 123
      510 EVT_MIG_ERROR_PROTECTING_VOLUME Error Error protecting volume (\\?\Volume{6a2d53fe-c79a-11e1-b189-806e6f6e6963}\). Error code = 123
      520 EVT_MIG_ERROR_UNPROTECTING_VOLUME Error Error unprotecting volume (\\?\Volume{6a2d53fe-c79a-11e1-b189-806e6f6e6963}\). Error code = 123

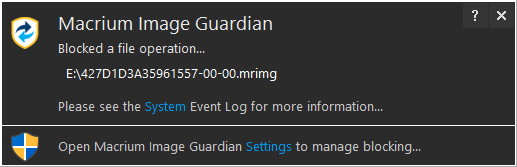

      When an unauthorized process attempts to write to, delete, or rename a Macrium backup file the action will be blocked and Windows Event 320 will be generated

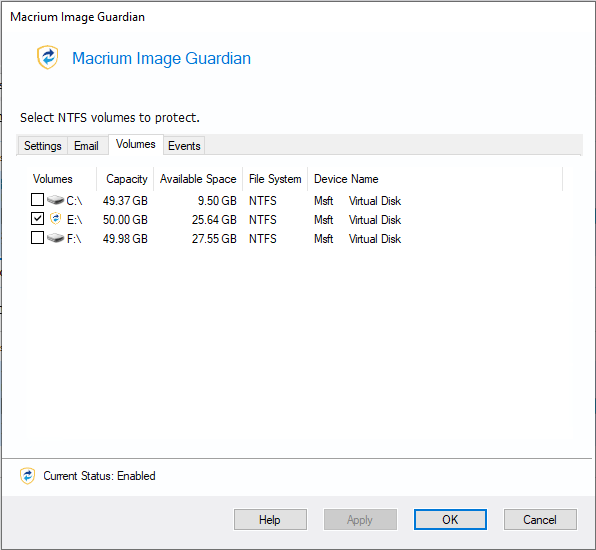

      Enabling and Disabling MIG on NTFS Volumes

      MIG can be enabled or disabled on any NTFS volume by using the Actions menu in the Macrium Reflect main window.


      A MIG shield indicates that a volume is protected:


      Please note that if the option to 'Automatically protect local backup drives' is selected in the MIG settings dialog, then unprotected volumes will be automatically protected when the next backup runs to the volume, or on reboot, if the volume contains the path of a backup destination saved in a backup definition.
