Overview
As happens sometimes, our more technically minded customers question a system that “just works”. We like these sorts of customers, as they keep us on our toes. In this specific case, the question came via the Macrium Forum and was: "Is it safe to continue using my computer during imaging?" The short answer is yes, although the longer explanation is much more involved. After the ensuing discussion, one of our community members suggested we write this information up as an FAQ entry somewhere, and internally, we felt it was worth preserving the information from that thread, so this blog post is an extended, polished version of our notes there.
Reflect Can Take an Image of a Live System. How Does This Work?

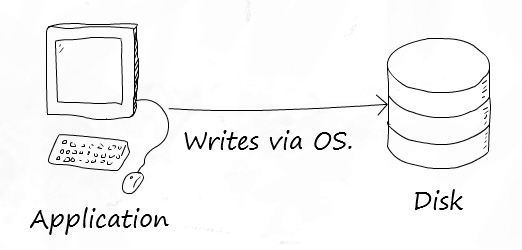

The diagram above shows a simple disk write.
Internally, Macrium Reflect relies on a Microsoft Windows component called VSS, which stands for Volume Shadow Storage. Microsoft’s VSS operates by taking what is called a copy-on-write snapshot of your system. This allocates a small temporary storage space. Then, every time you write to a part of your disk, the information on the disk is first copied to the snapshot before allowing the write to take place.

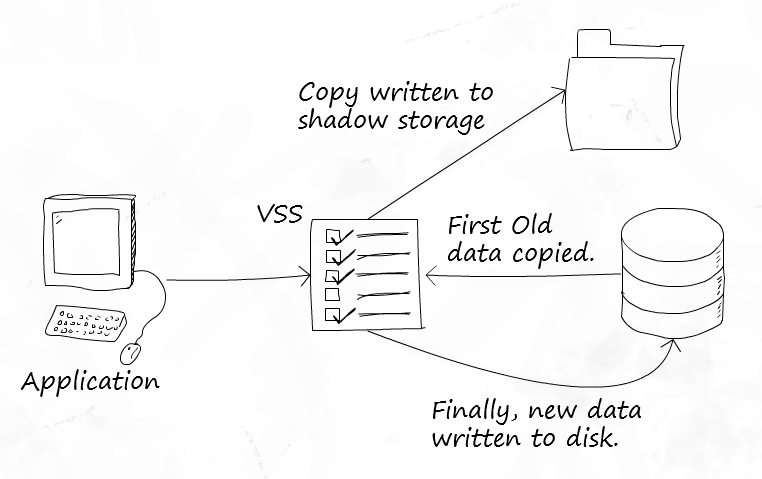

The diagram above shows the same disk write, this time with VSS in use.
This technique makes VSS quite efficient. A snapshot only contains as much data as has changed since the snapshot started – you do not need an entire copy of your disk. Also, writes are only affected for used space – free space does not need to copy anything, as there is no original to preserve.

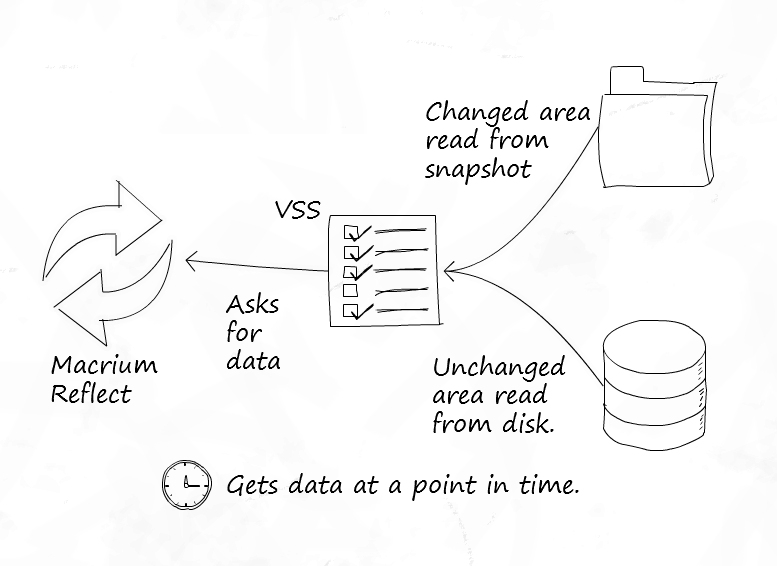

The diagram above shows Macrium Reflect reading unchanged data from the disk and changed data from the VSS snapshot.
However, there is another side to this advantage. The more writes made after the snapshot springs into existence, the more VSS must store. So if you perform an excessive amount of disk activity during imaging, the snapshot storage space may become large. VSS imposes a cap on this space, and should a snapshot attempt to exceed it, VSS will stop its copy-on-write behavior and delete the temporary storage.
Once the snapshot is finished with, the space can be freed up again, so the temporary storage space is only needed during use.
What Determines Where This Storage Space Is?
There is no magic to this – VSS chooses sensible defaults based on your available drives. This configuration can, of course, be altered, and Microsoft provides a tool for this called VSSAdmin.
Is the Data Taken at a Point in Time Really Consistent?
This is a difficult question to which there is no straightforward answer. As you may have realized already, if a copy is in progress when the snapshot starts, only the completed part of the copy will be included in the snapshot. The rest of it will count as new writes, and the old, inconsistent blocks will be copied to the snapshot!
To understand how VSS gets around this, we need to understand a little more about VSS architecture, so we’ll introduce three terms:
- Provider: In VSS land, a provider provides the VSS service and is responsible for all the coordination elements. Essentially, this is the “core” of VSS. Microsoft includes a VSS Provider with Windows, and Reflect uses this. (Technically speaking, there are two components, the coordinator and the provider; however, for simplicity, we have combined these for the purposes of explaining VSS.)
- Requester: A requester is, as you might expect from the name, an application that requests a snapshot to be made. This request goes to the provider.
- Writers: These components provide a mechanism for applications to be alerted to the creation of a snapshot, so they can prepare their data for snapshotting. VSS providers can notify VSS writers that a snapshot has been created, and the VSS writer can then perform the appropriate action. Once the snapshot has been taken, the provider again notifies the writers, so they may let the applications resume.
VSS Writers are an important part of VSS for certain environments. Imagine you are running a heavily loaded database server in production, or a virtual machine cluster. The database server will be open and be manipulating its database files, processing transactions, etc., while the virtual machines are continually performing disk operations for the virtualized OS. Taking a point-in-time snapshot might be fine, but due to the amount of IO, it is likely to catch one or more of these services off guard in an inconsistent state.
The role of writers is to inform these applications that a snapshot is about to be created. The application can then perform any tidy-up operations necessary to ensure that what is on disk is consistent. The snapshot starts, and the applications are then notified that they can continue. Now the on-disk state should be fine.
When Do I Need to Check My Applications Are VSS Aware? When Do I Need VSS Writers?
You need VSS writers for applications that perform large amounts of IO and depend heavily on the state of the files they are writing if you wish to back them up. Virtual machine disk images are a perfect candidate for this – the running image could easily become inconsistent.
Most applications do not write to disk in quantities of data large enough to be a problem. Many applications from Microsoft are also VSS aware, which helps greatly.
What About Current and Previous Snapshots?
VSS is smart enough to keep track of its temporary storage location, and will exclude anything in it, including the current temporary storage area and any persistent snapshots that have been previously created. So when the data is read by your backup software, you only get what you need.
When Is VSS in Use and When Is It Not with Regards to Taking a Backup?
Now a question you may not have thought of – when is VSS in use? Well, VSS solves the problem of imaging a live system neatly, so whenever you image your system with Macrium Reflect you are probably using VSS.
There is one exception to this – we have a fall-back mechanism for live versions of 32-bit Windows client operating systems up to Windows 7 (so XP, Vista and 7) called pssnap.sys. Reflect can use this on these systems if VSS is unavailable. pssnap provides the same copy-on-write technique as VSS, but with fewer extra features (pssnap.sys is not a VSS provider and is independent from VSS). Why have both systems? Well, VSS is a core component of Windows and available on every edition of Windows greater than XP SP2. We know it will be there as Microsoft are committed to this feature and it makes sense to use it as it is highly reliable. Before VSS we had no such mechanism so we built our own. It is equally as reliable but we felt the feature additions of VSS and the support for writers for enterprise scenarios really meant VSS made sense.
However in the rescue environment we do not use, or need to use, either pssnap.sys or VSS. Why? Because the system is not in use so the data should be perfectly consistent at all times. Of course we may well end up including persistent snapshots if they exist because without VSS they are not excluded.
You Keep Saying VSS Is a Windows Feature, Yet Only Reflect Uses It…
Actually, that’s not true. Windows itself uses VSS for system restore points! These system restore points are the persistent snapshots that might exist in your shadow storage.
That’s it. If you’d like to read about VSS directly from Microsoft, you can read their article on TechNet.
