      Generating a PowerShell Source File

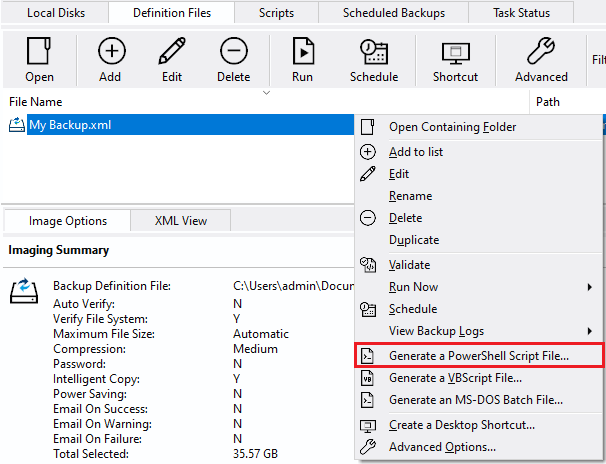

      To generate a PowerShell file select the Definition Files tab on the main window then right-click on a file and select 'Generate a PowerShell Script File'.


      This opens the PowerShell Script Generation Options dialog:

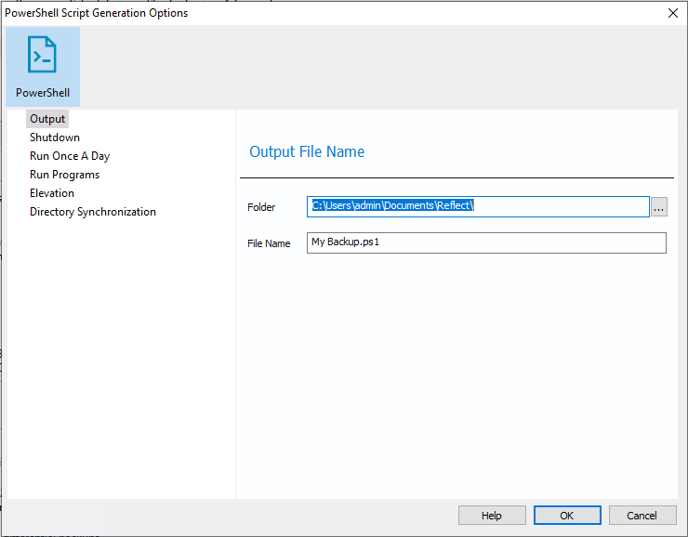

      Output


      Property
      Value
      Directory

      The folder where the source file is saved

      Selecting a folder other than the default folder will result in a warning prompting you to ensure the folder is protected from unauthorised access.
      The "Do not show this again" option is applied on a per folder basis, therefore selecting different previously unused folders will result in additional warnings.

      For more information see here.
      File Name The name of the PowerShell source file. This defaults to the XML file name with a ..ps1 extension

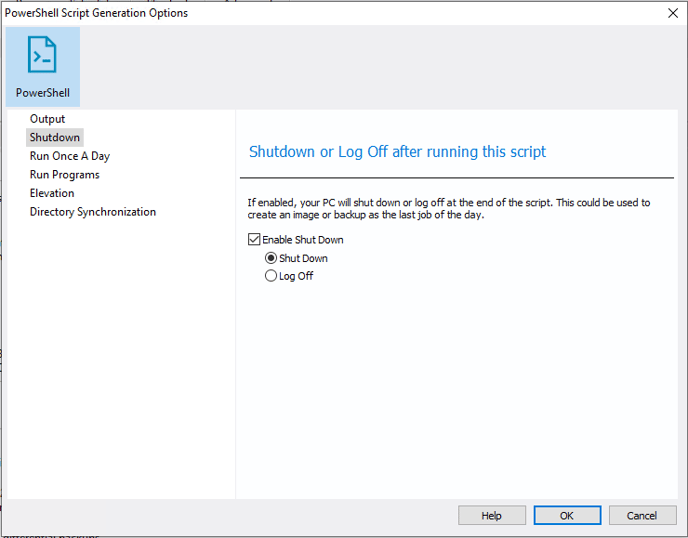

      Shutdown


      Property
      Value
      Enable Shut Down Select to enable this property
      Shut down The PC will shut down at the end of the backup
      Log Off The user will be logged out at the end of the backup

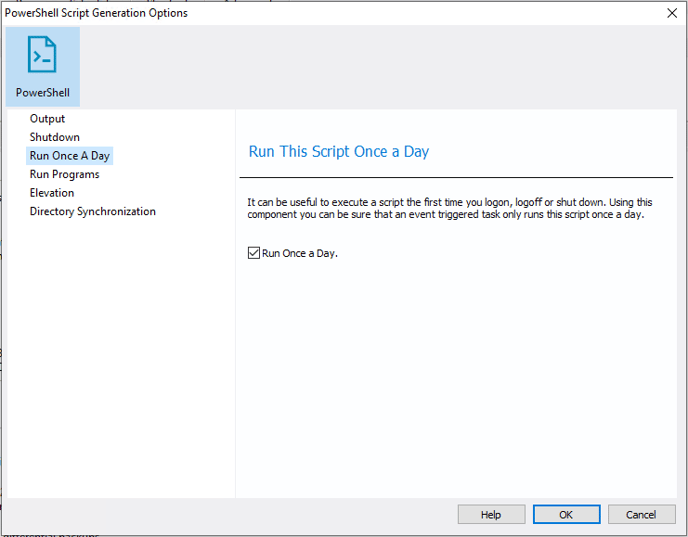

      Run Once a Day


      Property
      Value
      Run Once a Day If selected, will only enable this script to run once per day. This is useful for example if you want a backup to happen at first login or shutdown.

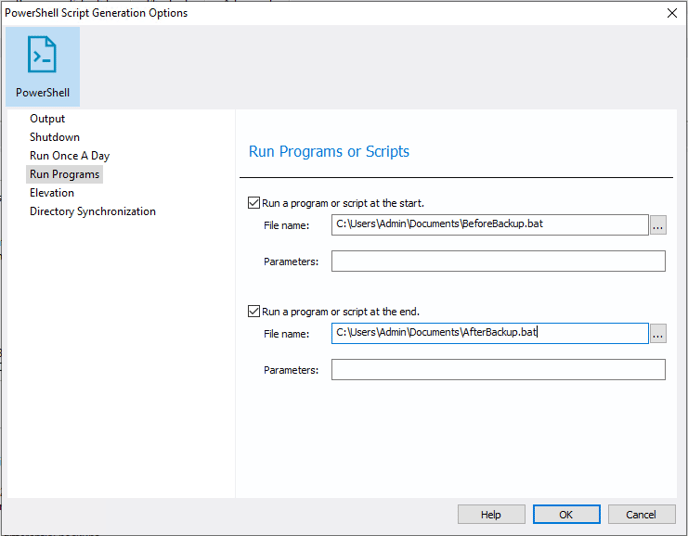

      Run Programs


      Property
      Value
      Run a program or script at the start Select to enable a program or script to run before the backup starts
      File Name The path and executable file name
      Parameters Optional command line parameters for the program
      Run a program or script at the start Select to enable a program or script to run when the backup ends
      File Name The path and executable file name
      Parameters Optional command line parameters for the program

      Elevation


      Property
      Value
      Enable Elevation If selected will enable UAC elevation for the entire script. This enables functions and programs to run outside the context of Macrium Reflect without requesting further elevation.

      Directory Synchronization


      Property
      Value
      Enable directory synchronization If enabled will use the MS utility RoboCopy to synchronize the backup target directory with the supplied directory.
      Directory Enter the folder that you want to synchronize your backup files to

      Click 'OK' to generate the PowerShell source file
